PRODUCT  DESCRIPTION

LPGK Series Filter

Feature and Usage

LPG-Filter (Also called Strainer) often installs before the flowmeter to filter the solid impurity contained in the flow. After filtering, it can avoid the positive displace flowmeter blocked and prolong the lifetime of the meter.

LPX Series Gas Eliminator

Feature And Usage

When there is much gas in the measured liquid, the flowmeter may mistake for the gas of liquid will be measured as well. So it can reduce accuracy.

Install this kind of Gas Eliminator before the flowmeter. It can eliminate and discharge the gas in the measured liquid. In this way, the flowmeter can measure the liquid more accurately.

Main Technical Datum

Nominal Pressure: 1.6, 2.5, 4.0MPa

Temperature Range: 0°C ~+ 150°C

Nominal Diameter: DN40~DN800

Pressure Loss: ≤0.03MPa

Medium Viscosity: (0.4~3000)mPa·s

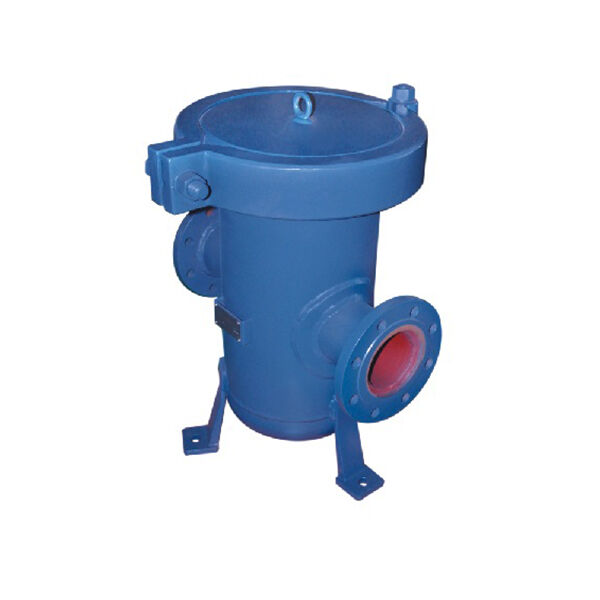

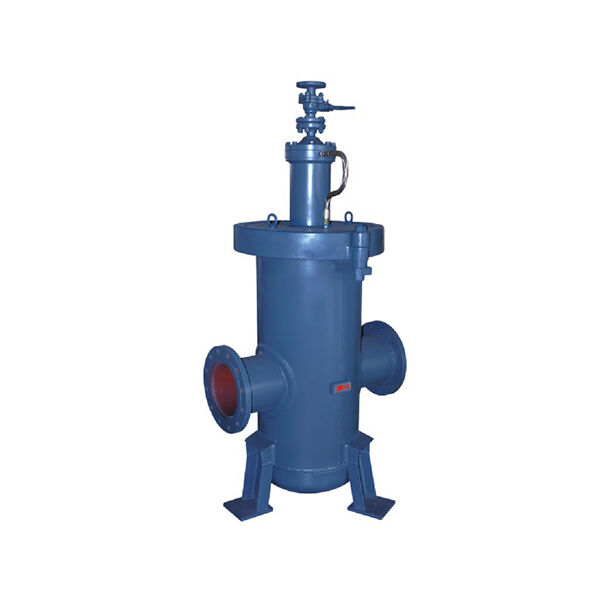

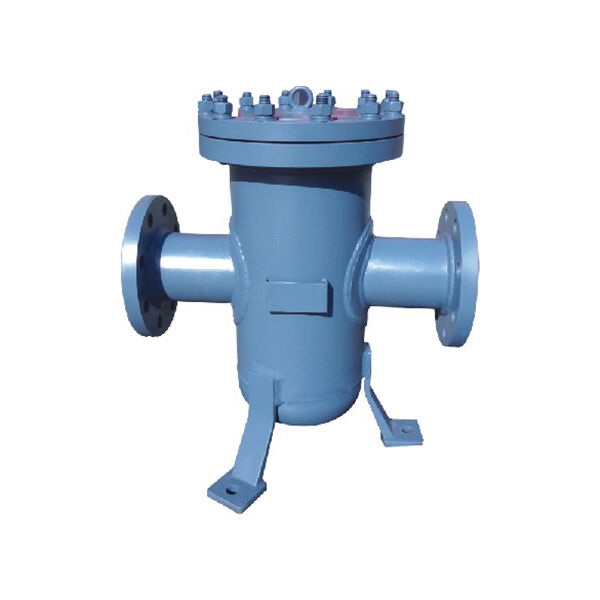

LPGX Series Filter And Gas Eliminator

Feature and Usage

LPGX Series Filter And Gas Eliminator is integrated the function of LPG Filter and LPX Gas Eliminator into one

body. It not only can filter the solid impurity but also can expel gas in the liquid at one time. It can be match with

many kinds of flowmeter to improve the measuring accuracy.


Main Technical Datum

Nominal Pressure: 1.6, 2.5, 4.0, 6.4MPa

Fluid Temperature: 0°C~+120°C

Press Loss: ≤0.03MPa

Medium Viscosity: (0.4~3000)mPa·s
